[CSC 335] Comparing Filters...

[Andrew J. Pounds]

I have made the comment the the SG filter does a really nice job -- that
is becasue it really does preserve a lot of the structure of the peaks
in the spectra without washing them away like the boxcar filter does.

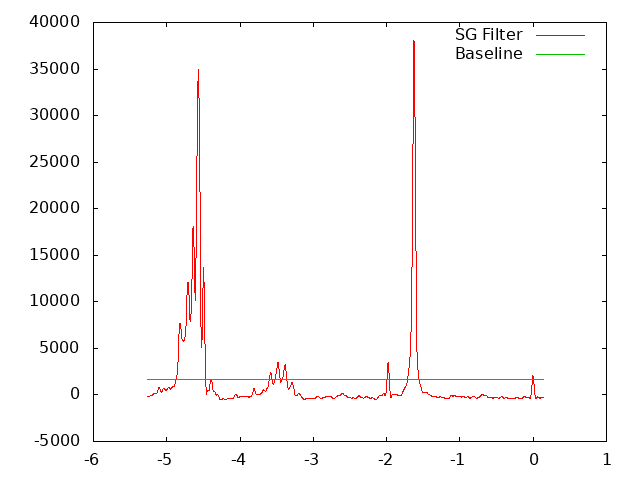

Here is the SG filter applied 5 times with a filter size of 11.


sg

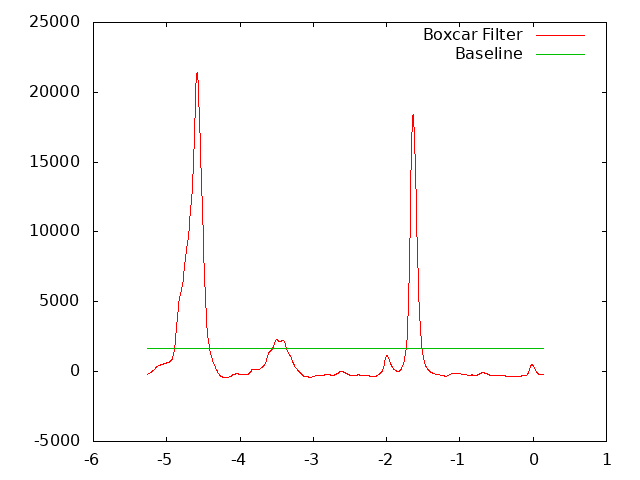

Compare that to the boxcar applied 5 times with a filter size of 11...


bc

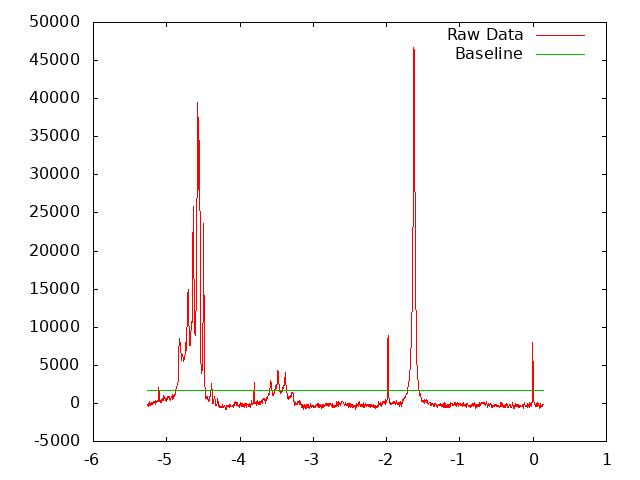

vs. the raw data...


rd



--
*Andrew J. Pounds, Ph.D.*
/Professor of Chemistry and Computer Science/
/Director of the Computational Science Program/
/Mercer University, Macon, GA, 31207 (478) 301-5627 /
