I'll try to get you started here... Steve, I'm copying you because you
may find this helpful...

In your describe.general file you had three variables,  Time, Direction,
and Velocity.

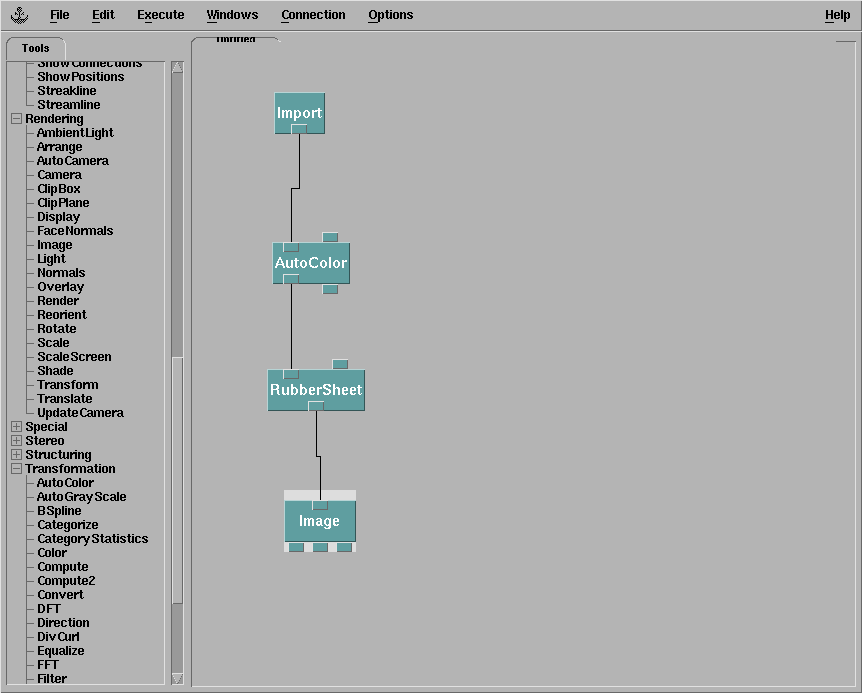

Create a DX net that looks like this....

dxnet

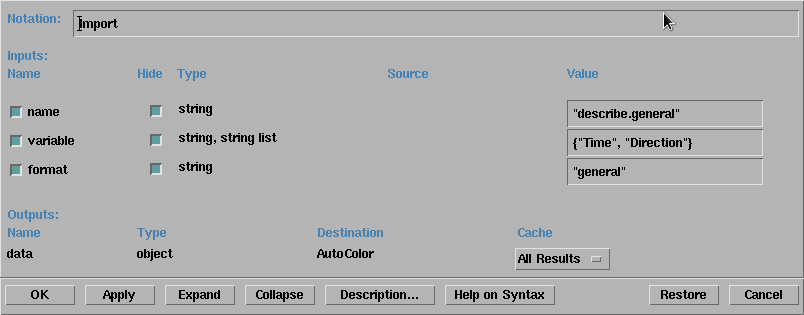

If you click on Import you it will open up and give you some options.
Here is what I put in it...

dximport

Note -- your file that you created in the data importer was called
describe.general.  I had to include that exact filename in the Import
box.    I am also only importing two of your variables.

Now, once you get this to run and run the program an image window should
open.  If you click on the AutoAxis tab (I think it is under options in
the Image window) you can name your X and Y axis.   See if you can get
this to work and let me know if you have other questions.




On 03/11/2013 06:17 PM, Marquisse Jackson wrote:
> How do you make sure which variable gets which axis?
>
> On Mon, Mar 11, 2013 at 4:05 PM, Andrew J. Pounds
> <pounds_aj at mercer.edu <mailto:pounds_aj at mercer.edu>> wrote:
>
>     Alright -- I just looked back at your data.  Here are some options....
>
>     1. Since you have time (always increasing) as your independent
>     variable you could plot it on the X-axis and then plot the
>     direction on the Y-Axis with the velocity on the Z-Axis.   This
>     will give you a 3-D parametric curve through a 3D space.   I don't
>     know if we can really glean anything from it, but might be a place
>     to start.
>
>     2. You could break your data down into hourly averages and plot
>     the results for several 24 hour day periods to see if and how they
>     change.  In this case I would have my X-axis be the hours, the Y
>     axis be the direction and the Z-axis be the velocity.  You could
>     alternatively do a color map for the velocity rather than using a
>     third dimension.
>
>     3.  Another option would be to do what I mentioned in 2, but swap
>     out the velocity and direction.
>
>     4. I seem to remember you wanting to see how the information
>     changed as a storm approached (tell me if I am not remembering
>     this correctly).  If that is the case you could do something like
>     2 or 3, but mark off the "regular cycles" prior to the storms
>     approach.  It things really do change once the storm hits, it
>     should be obvious from a plot like this.
>
>
>     Let me know how I can help.
>
>
>
>
>
>     On 03/11/2013 03:42 PM, Marquisse Jackson wrote:
>>     I wanted to do like a graph of velocity over time or velocity and
>>     direction over time..
>>     where time is on the x-axis and velocity and or direction are on
>>     the y-axis.
>>
>>     Even for 3D visualizations x-axis: time, y-axis: direction,
>>     z-axis: velocity.
>>
>>     On Mon, Mar 11, 2013 at 3:39 PM, Andrew J. Pounds
>>     <pounds_aj at mercer.edu <mailto:pounds_aj at mercer.edu>> wrote:
>>
>>         Okay -- so I was able to reproduce the graphic you sent me
>>         and it does indeed look like you are reading the data in
>>         correctly.  I think the next piece of the puzzle is for you
>>         to figure out what you want to visualize.  In other words,
>>         now that we know Data Explorer can read the data, we get to
>>         decide how we want to display it.
>>
>>         Have you given that some thought?
>>
>>
>
>
>     --
