Yesterday was interesting. I woke up thinking about graphics. On
Thursday and Friday I was struggling with how to implement proper timing
in our graphics programs because simply displaying the FPS in the
terminal window was forcing a callback to the screen driver - which
would be locked at 60 FPS. To get things like I wanted them I would
have to do all of the FPS timing INSIDE of the graphics without the use
of printf to the screen. In my mind that meant having to display the
FPS inside the graphics window -- which brought me back to the familiar
problem of how to get the text to show up in the window.
Getting the text to show up in the window is something I have done
before - but it took a lot of work and I wasn't necessarily ready to
throw that at you. Without this ability, however, it was going to be
impossible for you to get really good actual timings off of your code
and synch it properly to the physics.
So on Saturday morning, around 10 am, I went into "Monk Mode" - which
means I closed myself off in my study, turned on some classical music,
dug out all my OpenGL reference manuals, and solved the problem. It
took until about 3 pm - but it did not seem like it at all. For those
of you that took CSC 330 - I was in "flow". I also have to give a
shoutout to Eduardo Luciani who wrote a newer tutorial combining OpenGL
4.6 and FreeType 2 (all of my prior code used much earlier versions of
GL and was MUCH more complicated). His tutorial helped me take some
shortcuts that I can pass on to you. To make all this little easier
for you to digest - I tried to break my solution up into code pieces
that you can implement in your own code. These are:
1. void buildFonts() - build the font cache in memory from the Arial
TrueType font using the FreeType2 library. This needs to be called
in "init" or else it cuts the framerate by roughly a factor of 20 (I
tried it both ways)
2. std::string showFPS() - to calculate the FrameRate on the fly using
glfwGetTime function (still checking the
granularity/accuracy/reproducibility)
3. void doOrthoGraphics() - called in the display function after all of
the 3D work to:
* Load two new ORTHOGRAPHIC oriented vertex and fragment shader
programs
* Set up new texture based buffers for the graphics card
* Set up a 2D orthographic projection on a portion of the screen
* Calculates the frame rate using showFPS
* Writes the FPS string to an OpenGL Texture object using the font
cache created in buildFonts
* Display the texture in the orthographic window
I'm still working to repackage all of this for you (more comments as
well as describing what new structs and global variables have to
defined) and I have yet to test my lock for the framerate so we can

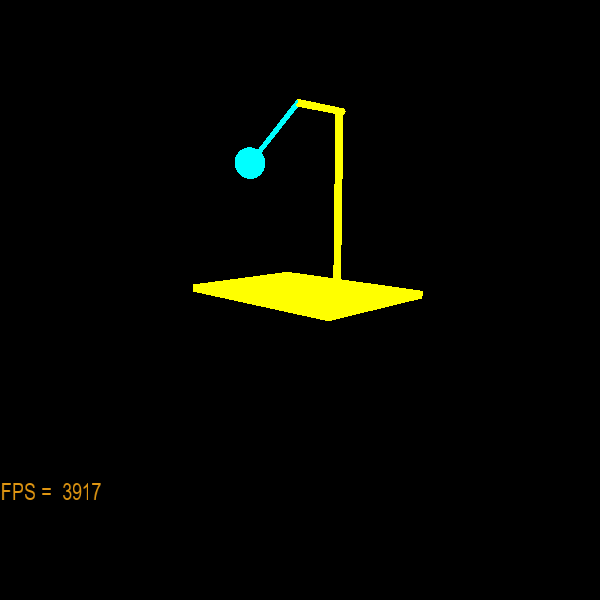

synch to the physics, but it all seems to be working and I'm getting
roughly 4000 FPS off of my NVidia GTX. I'll keep you posted on the
progress.
--
*/Andrew J. Pounds, Ph.D./*
/Professor of Chemistry and Computer Science/
/Director of the Computational Science Program/
/Mercer University, Macon, GA 31207 (478) 301-5627/
