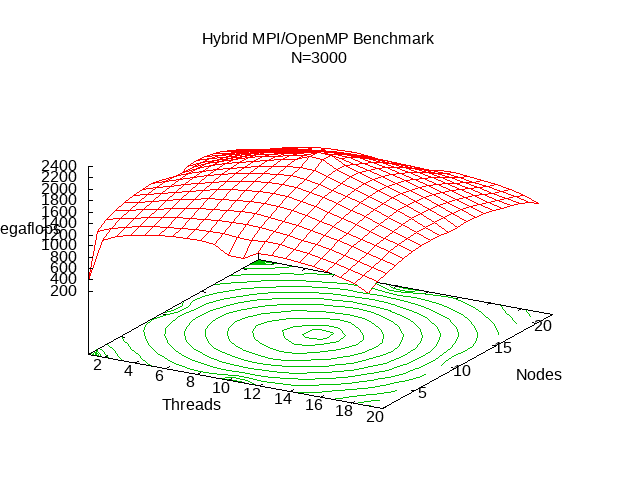

Sometimes it is hard to make out where the maximum is on the 3D plots.
It is possible to also add a contour diagram in the x-y plane to help
with these visualizations and determinations.  I have included a
slightly modified version of the file I sent you before (that I will
place on the class website) that includes the projection of the
megaflops onto the x-y axis.

set contour
set cntrparam levels auto 20
set title "Hybrid MPI/OpenMP Benchmark\nN=3000"
set xlabel "Threads"
set ylabel "Nodes"
set zlabel "Megaflops"
set dgrid3d 20,22
set hidden3d
set noclabel
set key off
show contour
splot [1:20] [1:22] "clustertune.dat" u 1:2:3 with lines
set output "plot.ps"
set terminal postscript enhanced color landscape
replot
set output "plot.png"
set terminal png
replot
